LLM module — #: <prompt> for shell-command generation

• Quickstart
  • Or use Claude Code (claude -p)
• OSC 133 — required for dialog / auto modes
• How a prompt flows
• Endpoint resolution (HTTP provider)
• Context injection
• Transparent failure — error notifications
• Live signals while typing
• History integration
• Chat surfaces
• Keybindings
• Configuration reference
  • Core
  • Provider — HTTP variant fields
  • Per-mode dispatch (providers[])
  • Provider — subprocess variant fields
  • Session continuation — trade-offs
  • Chat surfaces
  • Persistence — survive across sessions
  • Visual signals
  • Buffer sizes (tune for big models)
  • Model struct (entries in models)
• Security notes
• Shutdown semantics

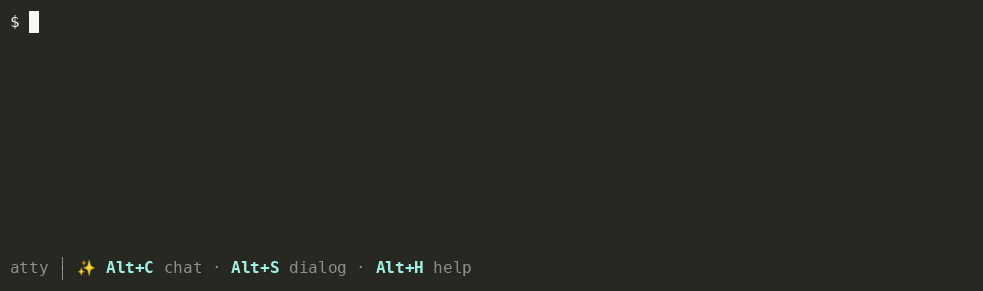

Type #: list all .zig files modified in the last week at the shell prompt and press Alt+A. atty wipes the typed line and injects the LLM-generated command into the readline buffer. You hit Enter to actually run it (or edit it / Ctrl+C to discard).

Three action keys, each with its own follow-up flow:

Why not Enter? Pressing Enter on #: … is a no-op by default (enter_action = .none) — defense against accidental LLM calls when you just want to type a comment. Set Config.enter_action = .single (or .dialog / .auto) to bring back the pre-Alt-key trigger flow if you preferred it.

Alt+A single rewrite · inline chat panel collapsing exec output · Alt+R recall picker showing the first user line of each persisted dialog.

Quickstart

Add the module to your src/config.zig tuple and rebuild:

const atty = @import("atty");

pub const modules = .{
    atty.modules.guardrail.configure(.{}),
    atty.modules.atuin.configure(.{}),
    atty.modules.history.configure(.{}),
    atty.modules.llm.configure(.{
        .provider = .{ .http = .{ .api_base = "http://localhost:11434/v1" } },
        .model = "qwen3-coder",
    }),
};

That’s enough for a local Ollama install — the module short- circuits to inert mode (no worker thread spawned) when no endpoint is configured, so the rest of your shell experience is untouched.

Or use Claude Code (claude -p)

If you have the Claude Code CLI installed and authenticated, swap the HTTP provider for a subprocess provider — atty shells out per request, the CLI handles auth out of its own login state, no env vars to wire.

The fastest path is a preset:

.provider = atty.modules.llm.providers.claude_sonnet_4_6,

Available preset constants (all under atty.modules.llm.providers):

For something the presets don’t cover, drop down to the factory:

.provider = atty.modules.llm.providers.claudeCode(.{
    .model = "claude-sonnet-4-6",
    .extra_argv = &.{ "--permission-mode", "acceptEdits" },
}),

The factory is shorthand for:

.provider = .{ .subprocess = .{
    .argv = &.{ "claude", "-p", "--output-format", "json", "--model", "claude-sonnet-4-6" },
    .prompt_via = .final_arg,
    .output = .{ .json_field = "result" },
    .timeout_ms = 60_000,
}},

For the Gemini CLI there’s a matching factory:

.provider = atty.modules.llm.providers.geminiCli(.{
    .model = "gemini-2.5-pro",
}),

shorthand for:

.provider = .{ .subprocess = .{
    .argv = &.{ "gemini", "--skip-trust", "-m", "gemini-2.5-pro", "-o", "text", "-p" },
    .prompt_via = .final_arg,
    .output = .raw,
    .timeout_ms = 60_000,
}},

Gotcha — --skip-trust is mandatory. The gemini CLI refuses headless (-p) runs in an untrusted workspace, and atty invokes it in the shell’s cwd. The factory bakes --skip-trust in so calls don’t fail with the trust error (alternatively set GEMINI_CLI_TRUST_WORKSPACE=true in the env). Note the tradeoff: this auto-trusts the current directory for that run, so gemini’s own tool-calls execute there without a confirmation prompt. Auth stays in your gemini login; atty never sees tokens.

Any prompt-in / text-out CLI follows the same pattern. For simonw/llm:

.provider = .{ .subprocess = .{
    .argv = &.{ "llm", "-m", "gpt-4o-mini" },
    .prompt_via = .stdin,
    .output = .raw,
}},

OSC 133 — required for dialog / auto modes

Dialog (Alt+S) and auto (Alt+Shift+S) modes need OSC 133 prompt markers so atty knows where command output begins / ends. Single mode (Alt+A) works without them.

# in your ~/.bashrc:
eval "$(atty init bash)"

# or ~/.zshrc:
eval "$(atty init zsh)"

Gotcha — .bashrc is load-bearing. The init snippet does exec atty bash at the top to re-launch your shell under atty. exec replaces the current shell, so any function definitions / PROMPT_COMMAND wiring the snippet ALSO sets are discarded along with it. The canonical flow expects the new atty bash to re-read .bashrc (interactive shells do), which re-runs the eval; this time ATTY=1 skips the exec and the OSC 133 setup applies in-place.

If you run eval "$(atty init bash)" manually from a fresh shell without it in your rc, the new atty session won’t have OSC 133 hooks — you’ll see the exec mode needs OSC 133 error on Alt+S. Two fixes:

1. Add the eval line to .bashrc (canonical), OR
2. After landing in the atty session, run eval "$(atty init bash)" a second time — ATTY=1 is now set, exec gets skipped, OSC 133 setup runs in your current shell.

Sanity-check with eval "$(atty doctor)" — colour-coded pass/fail for every step of the integration chain.

How a prompt flows

1. You type #: list zig files then press Alt+A.
2. onAction in the module sees the llm_exec_single action, checks ai_mode_active (line starts with #: ), and queues \x15 (Ctrl+U) on pending_injection. The proxy drains that to the shell on the next pollShellInput tick, wiping the typed #: … text. (Setting Config.enter_action = .single re-binds the legacy #:<Enter> trigger to the same code path — same result, different entry point.)
3. A worker thread wakes on a condvar, POSTs to ${api_base}/chat/completions with the prompt body, parses the choices[0].message.content from the response.
4. pollShellInput on the next tick surfaces the parsed command bytes. The proxy writes them to pty.master as if you’d typed them; readline echoes; you see the suggested command at the prompt.
5. You review + hit Enter (or edit, or Ctrl+C to discard). Normal shell behaviour from here on — the LLM module is out of the way.

When with_explanation = true (the default), the model also emits a one-sentence summary of what the command does; atty parses it out of the response and shows it in the statusbar’s hint row above the prompt.

Endpoint resolution (HTTP provider)

When Config.provider is .{ .http = ... } (the default), the endpoint is discovered in this priority order — first non-empty wins:

1. Config.provider.http.api_base (static, baked into your config.zig)
2. $LLM_API_BASE (env var; name configurable via Config.provider.http.api_base_env)
3. $OLLAMA_HOST (Ollama-native fallback; /v1 is suffixed automatically if absent — Ollama’s /v1/* mirror is OpenAI-compatible while its native API isn’t)

The static form is the most robust because it doesn’t depend on shell-env state at fork time — a misconfigured .bashrc or a launcher that strips env can leave the env-var paths silently inert. With the static form, the endpoint is whatever your compiled binary says it is.

Authentication: $LLM_API_KEY (name configurable via Config.provider.http.api_key_env) becomes a Bearer <key> header when set. Empty / unset → no Authorization header sent.

When Config.provider is .{ .subprocess = ... }, none of the above applies — the CLI tool handles its own endpoint and auth. atty just spawns it per request.

Trailing slashes are normalised on all three paths so http://localhost:11434/v1/ and http://localhost:11434/v1 both resolve cleanly.

Context injection

Config.context_env_vars exposes additional env vars to the model alongside the prompt. Each named var is read at attach time and (if set, non-empty) joined into a one-line context block appended to the user message:

atty.modules.llm.configure(.{
    .context_env_vars = &.{ "PATH_BASE", "PROJECT" },
}),

The model sees:

Generate a bash command to: list zig files

Context: PATH_BASE=/opt/foo, PROJECT=acme

Empty / unset env vars are skipped. The whole Context: line is omitted when none of the named vars are set, so you don’t get an empty context dangling on the prompt.

CWD / git-root context isn’t implemented yet — both need child-PID tracking via /proc/<shell_pid>/cwd (or OSC 7) to follow the shell as the user cds, which is a separate piece of infrastructure.

Transparent failure — error notifications

Silent failure on a typed prompt is the worst possible UX — the line vanishes and the user doesn’t know whether the model is slow, the endpoint is down, or atty was never going to handle it. Every failure path latches an error notification (muted red + ⚠ glyph, above the status bar):

Config.statusbar.error_ttl_ms controls how long the notification stays visible (60 s default). The hint slot (used for explanations) is suppressed while an error is active and resurfaces once the error TTL expires.

Live signals while typing

While you’re mid-typing a #: … prompt — before you hit Enter — atty already knows the LLM is the route. Two signals fire on the prefix match:

• Cursor colour (prefix_signal_cursor, prefix_signal_cursor_color): on the edge into match, atty emits OSC 12 to set the terminal cursor to the configured colour (cyan by default). On the edge out (backspace past the prefix, or line cleared after Enter), OSC 112 resets to default. All modern terminals honour OSC 12 / 112 — Ghostty, kitty, iTerm, WezTerm, VS Code.
• Status segment (prefix_signal_status, prefix_signal_status_text): the module’s statusText returns ✨ prompt (configurable) in the bottom status bar while the prefix matches. Suppressed during an in-flight request — the 🧠 thinking… indicator takes precedence.

Both are opt-out — set the bool config to false to disable.

History integration

Because onInput returns .replace_commit (not plain .replace), the proxy fires dispatchLineCommit on the typed #: list zig files line. atuin and the bundled history module both record it. Next time you start typing #: l…, ghost-suggest surfaces your prior prompts the same way it surfaces any normal command — Right / End / Ctrl+F to accept, multi-row pick list if configured. Ctrl+Shift+D’s delete_history_match works on the prompt too.

Chat surfaces

Two parallel UIs render the same conversation ring — pick the one that fits the moment.

• Alt+C — inline chat panel. Reserves N rows above the statusbar (default 10) for a slim chat strip. The shell stays visible above the panel; cursor focus moves into the panel’s input row. For casual back-and-forth while still watching command output scroll above. Ctrl+Alt+Up/Down grows/shrinks the panel one row at a time; Shift+Enter inserts a newline in the input (multi-line prompts); Ctrl+End snaps the view back to the live tail after a PageUp.
• Alt+Shift+C — full chat overlay. Takes over the screen via alt-screen swap. Bigger view of the conversation history, structured assistant rendering, more room. For focused review of long sessions.

Both share the same turns[] ring + dialog state, and both dispatch as .dialog (or .auto if Alt+T toggled auto-exec while the panel is open) so a exec ``` fenced action returned while either surface is open injects the suggested command at the user’s shell prompt. The two surfaces are mutually exclusive — opening one closes the other so cursor focus is unambiguous.

Chat turn rendering:

• Markdown styling — **bold** renders as SGR bold, `code` as cyan. See src/modules/llm/md_render.zig.
• Hard line breaks — \n in the LLM’s reply preserves as a panel row break (was previously flattened to space).
• UTF-8 / wide chars — codepoint-aware truncation via src/modules/llm/paint_width.zig; emoji + CJK bill the right number of columns.
• Word wrap — long turns wrap at the last space inside the column budget; the OLDEST visible turn gets clipped first so the newest reply stays anchored at the bottom.
• done action in chat — pushes the reason as an assistant turn (no conclusion banner, no dialog close); the conversation stays open. Outside chat surfaces, done still emits the conclusion banner and ends the loop.

Keybindings

Press Alt+H any time to scroll the full cheat-sheet into shell history. The shipped LLM bindings (registered on the module via default_bindings, so they only fire when the LLM module is enabled):

Override any of these by listing a different bytes for the same action in Keymap.bindings — the user list wins via first-match.

Configuration reference

Core

Provider — HTTP variant fields

Available as Config.provider.http.<field> (or on each ProviderEntry.config.http.<field> when using the array form):

Per-mode dispatch (providers[])

When Config.providers is non-empty it replaces the single- shorthand Config.provider. Each entry binds a Provider to a set of dispatch modes (single / dialog / auto / chat) and a cycle flag. Worker dispatch picks the first entry whose for_modes.matches(current_mode) is true.

Motivating case — haiku for one-shots, sonnet for dialog:

.providers = &.{
    .{ .name = "haiku",  .config = atty.modules.llm.providers.claude_haiku_4_5,  .for_modes = .single_only },
    .{ .name = "sonnet", .config = atty.modules.llm.providers.claude_sonnet_4_6, .for_modes = .dialog_only },
},

ProviderEntry fields:

Provider — subprocess variant fields

Available as Config.provider.subprocess.<field>:

Why agentic CLIs need this. gemini/claude run as autonomous agents with their own filesystem/shell tools. Without the steering text they’ll reach for those tools instead of emitting atty’s exec block — atty never sees the result and the user can’t confirm it. The presets ship the override on by default so chat/dialog “just works”; a plain prompt→completion model (simonw/llm, OpenAI HTTP) has no such tools and gets no extra text.

Session continuation — trade-offs

With .session = .continuation the CLI owns the conversation transcript: atty sends only the latest user turn each request and lets the CLI’s own session state (claude’s --resume <id>) maintain history. Saves tokens and CLI-side compute (no re-uploading the transcript every turn) at the cost of:

• Atty still records every turn it sees, so the chat overlay (Alt+C / Alt+Shift+C) shows the full conversation atty participated in: user turns the user typed + assistant turns the CLI replied with. What changes is only the prompt atty sends to the CLI on each subsequent request — instead of re-rendering the whole turns[] ring as one big text body, atty sends only the latest user turn and trusts the CLI’s session state to remember the rest. If the user inspects mid- session they see atty’s full record; the CLI’s view may include side-effects atty never recorded (e.g. tool calls invoked by the CLI itself).
• Session id is per-dialog. Ctrl+Shift+X (cancel) and any action: "done" from the model both reset rt.session_id — the next dialog starts a fresh CLI session. atty doesn’t try to persist session ids across atty restarts; the chat_persist file is atty’s own memory.

Without continuation (default) every request rebuilds the full prompt from atty’s turns[] ring — atty is the sole memory.

The atty.modules.llm.providers.claudeCode(...) factory returns a pre-shaped subprocess provider for claude -p --output-format json. Use providers.claudeCodeStream(...) for the --output-format stream-json variant — functionally equivalent today (atty extracts the final result event), but the line- delimited shape lays the groundwork for paint-side partial-token streaming when wired up.

Chat surfaces

Persistence — survive across sessions

Each dialog session writes its own NDJSON file. Files are named YYYYMMDDTHHMMSS-XXXXXX.jsonl (timestamp + 6 hex chars of in-second uniqueness; uniqueness enforced via O_CREAT|O_EXCL retry). Turns append on every pushTurn; the captured conclusion banner is appended as a final {"kind":"conclusion",...} record when the dialog completes (.done → dialogReset rotation), with detach catching the rare mid-dialog-exit case. Incognito sessions (Ctrl+Shift+I) skip the disk path entirely — incognito gates local recording, matching the 🕶 inline-panel indicator.

Migrating from a pre-multi-dialog atty? If your previous build wrote ~/.local/share/atty/chat.jsonl, that file is left untouched but no longer read. The new home is ~/.local/state/atty/dialogs/. Move or cat the old NDJSON into a single dated file under the new directory if you want it surfaced by the (upcoming) recall picker.

Visual signals

Buffer sizes (tune for big models)

Model struct (entries in models)

.models = &.{
    .{ .name = "qwen3-coder:30b" },
    .{ .name = "gemma3:4b", .history_turns_max = 3 },  // small-context trim
    .{ .name = "llama3:70b" },
},

Security notes

• C0 + C1 + DEL controls are stripped from the parsed command before it touches the PTY. Includes UTF-8-encoded C1 (0xC2 0x80..0x9F for U+0080..U+009F) — a model that emits CSI (U+009B) followed by a payload would otherwise inject a real terminal escape sequence the user never typed.
• CR is dropped specifically in the JSON-escape decode path and in the sanitiser. Writing \r to the PTY acts as Enter, so a hostile model that returned cmd1\rcmd2 would have auto-executed cmd1 without review. The double-strip is defence in depth.
• The prefix is shell-safe. #: … is a # comment in bash / zsh / sh. If the module is misconfigured or returns no command, the shell silently ignores the typed line — it doesn’t try to execute : as a command-not-found.

Shutdown semantics

The worker thread is t.detach()‘d on atty exit rather than joined. If the worker is mid-request (slow endpoint, OS TCP timeout), joining would hang atty’s exit for tens of seconds. The OS reaps the thread at process exit; the heap allocations the worker references (Shared / api_base / api_key / shell / context_blob) are deliberately leaked. Inert-mode runtimes (no worker spawned) clean up synchronously since there’s nothing to race against. A proper timeout on client.fetch is the long-term fix; see timeout_ms in the config table.
